This is the de facto standard!


Nowadays, video distribution services need to adapt to various devices such as PC, TV, Smartphone and 4KTV due to the diversifications of viewing.
Therefore, the demand of the file transcoding is expanding rapidly.

"FileConverter FC4000" is the file transcoding application on Windows that supprts H.264/AVC and H.265/HEVC.

Benefits / Features

[POINT 1] A Avariety of Input File Formants

Various formats of Input files are available, such as AVI and Windows Media for the PC, HDV for broadcast, and XAVC. Output files are high quality H.264 and H.265 files.

[POINT 2] Support Evolotion of Media Formats

The six features of FC4000(8K,120fps,12bit, BT2020, HDR,MPEG-4 ALS) are available.

[POINT 3] Integration with other systems is easy

Integration with other systems is easy by job management, a watch folder function, post processing (a mail delivery and command execution), and REST-API.

[POINT 4] H.265/HEVC Realizes Smooth Video Conversion with High Quality

The rate control is unique technology developed by NTT research laboratories. Stable encoding with a constant bit rate specified by the user is possible, even when the characteristics of the image are changing.

Specifications / Details

Function

Video and Audio Filter Support

Audio and video filters included in FileConverter FC4000 include logo insertion, title insertion, auto crop, timecode burn-in, source properties modification, color modification filters, and many more.

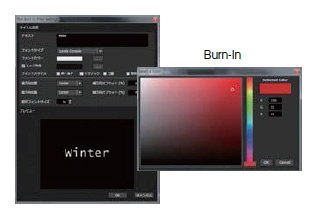

Burn-In

Job Manager

Job Manager monitors and controls current, queued, completed, and failed conversions. A diagnostic mode allows you to requeue conversion failures, troubleshoot problems, and change the priority level for any job. It also has a benchmark tool to check your basic encoding speed.

Watch Folder Feature

Watch Folder Feature automates batch transcoding jobs for the users who need to simply define specific folders with presets and drop video files in the folders.
It also supports post-conversion tasks such as FTP/network retrieval and email notification upon the job start.

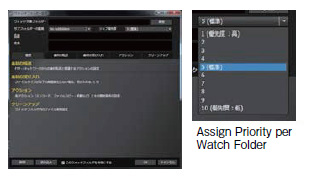

Assign Priority per Watch Folder

Specification

Import File Formats:

Input FormatContainerVideo CodecAudio Codec
Flash Video F4V H.264 MPEG-2 AAC
Generic MP4 MP4 H.264 MPEG-2 AAC
Generic TS MPEG-2 TS H.264 MPEG-2 AAC,
MPEG-1 Layer-2, AC-3*1
MPEG-2 MPEG-2 AAC,
MPEG-1 Layer-2, AC-3*1
Generic PS MPEG-2 PS MPEG-2 MPEG-2 AAC,
MPEG-1 Layer-2, AC-3*1
MPEG-1 PS MPEG-1 MPEG-2 AAC,
MPEG-1 Layer-2, AC-3*1
DVD VOD MPEG-2 Liner PCM, AC-3*1
HDV MPEG-2 TS MPEG-2 MPEG-1 Layer 2
Capella Intermediate INTERIM Uncompressed Linear PCM
H.264 Linear PCM
Panasonic P2 MXF DVCPRO,
DVCPRO 50,
DVCPRO HD
Linear PCM
AVCI 50, AVCI 100 Linear PCM
IEC DV25 Linear PCM
QuickTime*2 MOV*4 DVCPRO,
DVCPRO 50,
DVCPRO HD
Linear PCM
Uncompressed Linear PCM
DV25 Linear PCM
ProRes 422 QuickTime
supported codecs
SONY XDCAM MXF DVCAM(DV25) Linear PCM
IMX (MPEG-2) Linear PCM
MPEG-2 HD Linear PCM
AVCHD MPEG-2 TS H.264 Linear PCM, AC-3*1
AVI AVI Grass Valley HQ*3 Linear PCM
Microsoft DV Linear PCM
Uncompressed Linear PCM
Windows Media WMV Windows Media Video Windows Media Video
XDCAM-EX MP4 MPEG-2 Linear PCM
3GP 3GP QuickTime Supported Video Codecs QuickTime Supported Video Codecs
Leitch Exchange Format LXF MPEG-2 Linear PCM

Import File Formats for 4K:

Input FormatContainerVideoCodecAudio Codec
QuickTime*2 MOV*4 ProRes 422, ProRes 4444 QuickTime Supported Codecs
Uncompressed Linear PCM
AVI AVI*5 Grass Valley HQX Linear PCM
Grass Valley Lossless Linear PCM
Uncompressed Linear PCM
Generic TS MPEG-2 TS H.265 MPEG-2 AAC,MPEG-1 Layer2, AC-3*1
Elementary Stream - H.265 -
MKV MKV VP8, VP9, H.264 MPEG-2 AAC
XAVC MXF XAVC H.264 Intra / LongGOP Linear PCM
DPX DPX Uncompressed -

Export File Formats:

Output FormatContainerVideo CodecAudio Codec
Elementary Streams - H.264, H.265 MPEG-2 AAC, MPEG-1 Layer2, Linear PCM, AC-3*6
Generic TS MPEG-2 TS H.264, H.265 MPEG-2 AAC, MPEG-1 Layer2, Linear PCM, AC-3*6
Generic MP4 MP4 H.264, H.265 MPEG-2 AAC, Linear PCM
acTVila MPEG-2 TS H.264 MPEG-2 AAC
ARIB MPEG-2 TS H.264 MPEG-2 AAC
MPEG-DASH*6 Multiple MP4 H.264, H.265 MPEG-2 AAC
Microsoft Smooth Streaming*6 Multiple MP4 H.264 MPEG-2 AAC
HTTP Streaming File Format*6 Multiple MPEG-2 TS H.264 MPEG-2 AAC
Avid DNxHD*6 MXF, MP4 DNxHD Linear PCM
XAVC*6 MXF XAVC H.264 Intra Linear PCM
SONY XDCAM*6 MXF DVCAM(DV25)
IMX(MPEG-2)
MPEG-2 HD
Linear PCM

*1 Separate module installation necessary for AC-3 audio import
*2 QuickTime 7.7 or later necessary for .mov file import
*3 Separate module installation necessary for Grass Valley HQ file import
*4 Created files with Final Cut Pro X
*5 Created files with Edius7.0
*6 Optional

Recommended Hardware

CPU IntelXeon(AVX*7 supperted CPU) or Core-i7
Memory 32GB or more
Hard Disk 250GB (SATA. 7200rpm)
USB port Minimum of one USB port
OS Microsoft Windows 7 (64bit), Microsoft Windows 8.1 (64bit), Microsoft Windows 10 (64bit), Microsoft Windows Server 2012 R2
Configuration Application DVD (Installer, Manual), USB dongle

*7 Advanced Vector Extensions (AVX) are extensions to the x86 instruction set architecture for microprocessors. First supported by Intel with the Sandy Bridge processor.
